1 Rapid rise door
Typically a PVC door with stainless steel or anodised aluminium frame and drum cover. Featuring contactless motion sensor activation and rapid open-and-close speeds – interlocked with break glass and status indicators. Designed to ensure limitation of leak flow, the seal technology provides environmental control and can protect your process rooms from dust, drafts and dirt. The low friction technology, combined with a frequency inverter driven motor, assures for the smooth and silent operation.
Download Data SheetGT Rise Max is Guardtech’s elite-level raid rise door solution – a top-of-the-range, high-specification roller door suitable for the demands of ISO5 applications that require the most stringent control and conditions.
Designed for applications requiring a superior limitation of leak flow, GT Rise Pro is one of the slimmest high-speed doors on the market, offering smooth operation, pressure resistance and Low Friction Technology.
GT Rise Plus is Guardtech’s mid-level rapid rise door solution – a lower-spec alternative to the GT Rise Pro option which provides favourable operating speed and high-level sealing properties.
GT Rise Lite is Guardtech’s entry-level rapid rise door solution – a high-quality door offering all the economical benefits of a rapid roll while retaining a competitive price point against other models.
GT Rise Fire is Guardtech’s fire-rated rapid rise door solution – one of the most robust, safety conscious options available, constructed from aluminium 40mm thick panels and filled with PS insulation foam.
2 Standard single door
GRP or powder-coated steel personnel doors with stainless steel push plates, kick plates and handles, and 400mm x 400mm vision panels. All Guardtech doors can be electromagnetically interlocked. Also available as a fully flush system with recessed base for flooring to cove into. Powder-coated CR4 mild steel door leaf with 45mm Dufaylite insulated core, flush-mounted vision panel and stainless-steel fixtures & fittings. Aluminium wrap around frame. Interlocked.
Download Data SheetGT Access Max is a range of pneumatic seal doors that provide the highest possible airtight containment for facilities with the most stringent demands for tight control – such as GMP cleanrooms and biosafety labs.
Fully flush powder-coated steel cleanroom grade door leaf and frame solution – combining stunning aesthetics with elite performance to deliver the best results for the most demanding critical environments.
GT Access Plus are semi-flush and nearly flush powder-coated steel cleanroom grade door solutions – featuring a QuadCore or MF (mineral fibre) Core, available in single and double door configurations.
GT Access Lite is Guardtech’s entry-level door option – a powder-coated steel door with a standard anodised aluminium frame, featuring PIR insulation core and a clear opening width of 650 – 3140mm.
GT Access Fire is Guardtech’s fire-rated cleanroom door solution – an advanced-hinged door range that offers an unparalleled combination of insulation, fire rating, acoustic ratings and smoke sealing.
3 Standard double door
GRP or powder-coated steel personnel doors with stainless steel push plates, kick plates and handles, and 400mm x 400mm vision panels. All Guardtech doors can be electromagnetically interlocked. Also available as a fully flush system with recessed base for flooring to cove into. Powder-coated CR4 mild steel door leaf with 45mm Dufaylite insulated core, flush-mounted vision panel and stainless-steel fixtures & fittings. Aluminium wrap around frame. Interlocked.
Download Data SheetGT Access Max is a range of pneumatic seal doors that provide the highest possible airtight containment for facilities with the most stringent demands for tight control – such as GMP cleanrooms and biosafety labs.
Fully flush powder-coated steel cleanroom grade door leaf and frame solution – combining stunning aesthetics with elite performance to deliver the best results for the most demanding critical environments.
GT Access Plus are semi-flush and nearly flush powder-coated steel cleanroom grade door solutions – featuring a QuadCore or MF (mineral fibre) Core, available in single and double door configurations.
GT Access Lite is Guardtech’s entry-level door option – a powder-coated steel door with a standard anodised aluminium frame, featuring PIR insulation core and a clear opening width of 650 – 3140mm.
GT Access Fire is Guardtech’s fire-rated cleanroom door solution – an advanced-hinged door range that offers an unparalleled combination of insulation, fire rating, acoustic ratings and smoke sealing.
4 Ceiling grid and tiles
Typically, we use a lightweight and strong aluminium grid system featuring click-fix cross connectors, providing a tight seal and alignment. A reusable and relocatable system that is FFU and lighting compatible. Ceiling tiles tend to be powder-coated galvanised steel sheets that are silicon sealed into the grid, providing an impervious finish that is easy to clean and does not harbour contaminants within its profile. Manufactured to the standards set by EN ISO 9001:2008.
Download Data SheetGT Lid Max is Guardtech’s elite-level ceiling option – a T56N die-cast nodal grid system. This walk-on aluminium frame construction features high deflection strength and supports powder-coated PIR 50mm panels.
GT Lid Pro is a high-spec, customisable, modular, fully flush controlled environment panel system featuring an intelligently engineered demountable joint with an aluminium extrusion to all sides.
An intelligent insulated ceiling panel system featuring a unique castellated and symmetrical tongue-and-groove joint which achieves high thermal and structural performance.
T50 click-fix connector grid and aluminium tiles, designed as a non-walk-on frame construction with high deflection strength, consisting of 50mm wide aluminium extrusion main and cross runners of identical shape.
This product range does not currently include a Fire Rated solution. Please consult a Guardtech rep for more information on your fire safety options.
5 Ceiling panels
Panelled ceiling with thermal insulation core provides a flush surface. Lighting and filtration modules are recessed into apertures or surface mounted for laboratory applications. Both light and strong, the aluminium honeycomb panels have one of the best strength-to-weight ratios of any construction materials available today and have been developed to meet the exacting requirements of the cleanroom industry.
Download Data SheetGT Lid Max is Guardtech’s elite-level ceiling option – a T56N die-cast nodal grid system. This walk-on aluminium frame construction features high deflection strength and supports powder-coated PIR 50mm panels.
GT Lid Pro is a high-spec, customisable, modular, fully flush controlled environment panel system featuring an intelligently engineered demountable joint with an aluminium extrusion to all sides.
An intelligent insulated ceiling panel system featuring a unique castellated and symmetrical tongue-and-groove joint which achieves high thermal and structural performance.
T50 click-fix connector grid and aluminium tiles, designed as a non-walk-on frame construction with high deflection strength, consisting of 50mm wide aluminium extrusion main and cross runners of identical shape.
This product range does not currently include a Fire Rated solution. Please consult a Guardtech rep for more information on your fire safety options.
6 Walls
The standard choice would be powder-coated CR4 mild steel panels with polyisocyanurate (PIR) insulated core and interlocking joints. The panels feature a 50mm thickness to form walls and ceiling. Highly durable, cleanable and chemically resistant, the walls are silicon sealed. However, there are several options for clients to explore, with a diverse range of benefits for particular applications.
Download Data SheetGT Shell Max is Guardtech’s elite-level cleanroom wall solution – a high-spec, customisable, modular, flush controlled environment system featuring a demountable joint with an aluminium extrusion to all sides.
GT Shell Pro’s insulated panel system features a unique castellated and symmetrical de-ended tongue-and-groove joint which achieves high thermal and structural performance.
GT Shell Plus is Guardtech’s lower mid-level cleanroom wall solutions – a high-performance insulated wall panel that maintains hygiene-safe requirements when exposed to corrosive cleaning agents.
GT Shell Lite is Guardtech’s entry-level cleanroom wall solution – a PIR insulated powder-coated modular composite panel that can be used for a wide range of cleanroom applications.
GT Shell Fire is Guardtech’s fire-rated wall solution – a high-quality cleanroom grade panel which provides a tested fire resistance to match the performance required for internal firewalls.
7 Cladding
Whether it’s a more economical non-anti-microbial options all the way up to a sophisticated 120-micron thick, high-spec chemically inert PVC film, the Guardtech Group’s Directors, Design Engineers and Installation team have worked together to carefully select four industry-leading ceiling options for your consideration.
DOWNLOAD DATA SHEETGT Clad Max is Guardtech’s elite-level cleanroom wall cladding solution – a high-spec chemically inert PVC film, laminated to pre-treated metal, suitable for environments with the most stringent requirements.
GT Clad Pro is a homogeneous flexible vinyl sheet with coved corners that complies with EN649 and is designed to be a permanent wall and ceiling covering for a wide range of cleanroom-based applications.
GT Clad Plus is the Guardtech Group’s lower mid-level PVC wall cladding option – a hygienic, rigid system that features anti-microbial properties and delivers on both style and performance.
GT Clad Lite is the Guardtech Group’s entry-level cleanroom wall cladding option – a durable, low maintenance solution that’s easy to clean and delivers excellent chemical resistance.
This product range does not currently include a Fire Rated solution. Please consult a Guardtech rep for more information on your fire safety options.
8 Flooring
Typical projects feature homogenous vinyl flooring reinforced with cross-linked polyurethane, UV-cured, hold-welded joints. Coved 100mm up the wall over underlay former and capped. Copper-grounded anti-static vinyl also available.
Download Data SheetGT Deck Max is Guardtech’s elite-level flooring solution – a very high performing homogeneous vinyl floor covering in tile form designed for cleanroom applications adhering to the most stringent standards.
GT Deck Pro is a superior anti-static ESD dissipative flexible vinyl floorcovering available in both sheet and tile – this 2mm homogeneous material is calendered and pressed for high performance.
A homogeneous coved vinyl flooring solution that offers superior performance for controlled environments, is scratch resistant and maintains its colour brightness for relatively long periods of time.
GT Deck Lite is the Guardtech Group’s entry-level cleanroom flooring solution – a multi-layered polyurethane-treated interlocking looselay vinyl tile that is intelligently engineered to withstand heavy traffic.
This product range does not currently include a GT Fire solution. Please contact the team to discuss your options.
9 Glazing
Fully-flush or semi-flush glazing can be installed throughout your facility, as well as double-glazing.
Benefits
- Conforms to European and International standards
- Recognised worldwide as a safety glass
- If broken, it breaks into relatively harmless pieces reducing the risk of serious injury
10 Return Air
The return air path is factored in to structural components, either via bespoke panels with hollowed channels to accommodate sufficient airflow or as columns produced from the same materials used for wall construction. These columns can also be used as service chases to conceal process and plant utilities.
11 Mezzanine Floor
To optimise your available space and support the cleanroom structure, we offer full mezzanine design and installation, including edge protection, staircases and cat ladders.
12 Supporting Steelwork
For applications where the host building cannot be used to support the cleanroom structure, steelwork erections may be necessary – these can also be used to facilitate plant gantries and maintenance access.

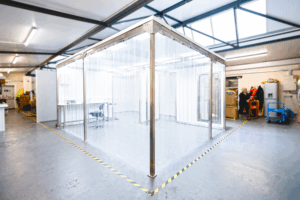

13 Softwall PVC curtains
The Guardtech Group utilise GT Max Strip PVC curtains in our range of Isopod Rapid Cleanrooms. Ideal for segregation and equipment transfer, if this is a solution you’d like to incorporate into different aspects of your Guardtech Cleanrooms build we can run you through your options.
DOWNLOAD DATA SHEET
